Features•Oculink(SFF-8612)toPCIeconvert•ExternalSFF-8612connector,pin-outdefinedbyPCIe.•CompliantwithNVMEExpress1.2a.•SupportPCIExpressBaseSpecificationRev3.0•SupportSSD_...
ModelIO-PEX86123
Input InterfacePCIe
Output InterfaceOculink (SFF-8612)
Motherboard SlotPCIex4、x8 ，x16
Transmission Rate
Auxiliary AccessoriesLow Profile Bracket
Product Size79.2x47.5mm
Features
• Oculink(SFF-8612) to PCIe convert
• External SFF-8612 connector, pin-out defined by PCIe.
• Compliant with NVME Express 1.2a.
• Support PCI Express Base Specification Rev 3.0
• Support SSD_Form_Factor_Version1_a
• Compliant with SFF-8612 Specification Version 3.5.
System Requirement
• Windows 7,8,8.1,10 ,11 or later
• UEFI 2.3.1 or later
Package Content

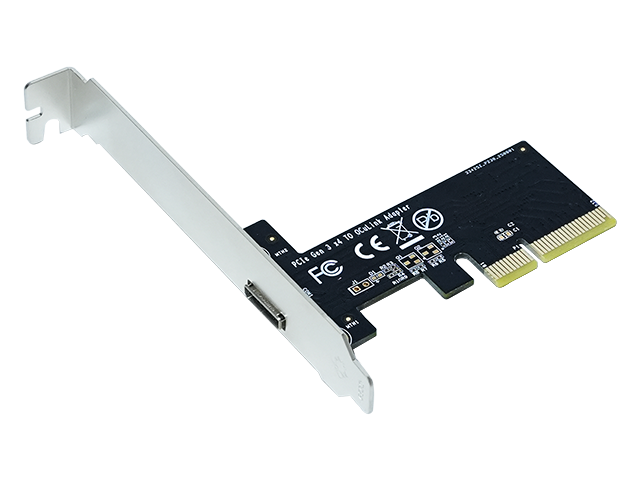

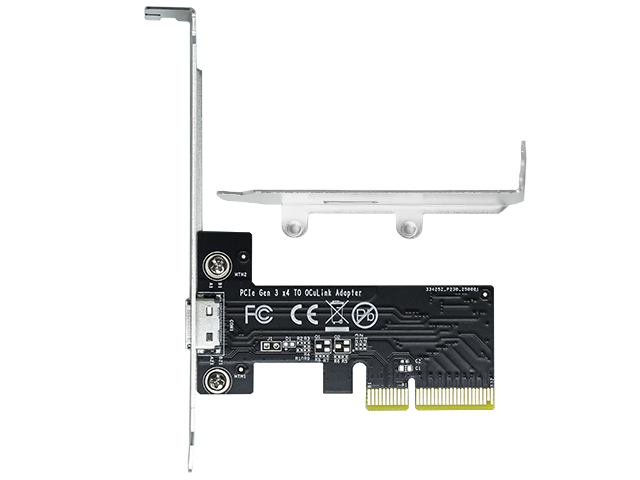

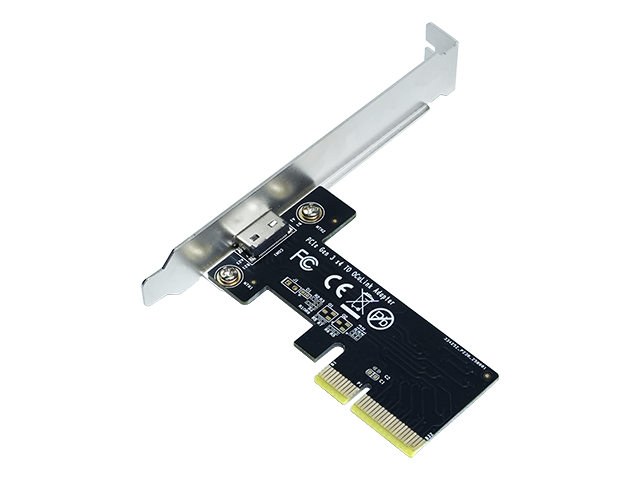

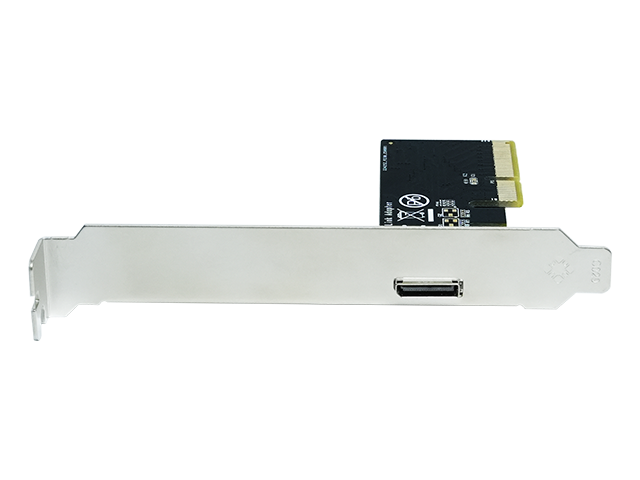

• 1 x PCIe Gen3 /4-Lane to Oculink (SFF-8612) Adapter Card
• 1 x Low Profile Bracket
