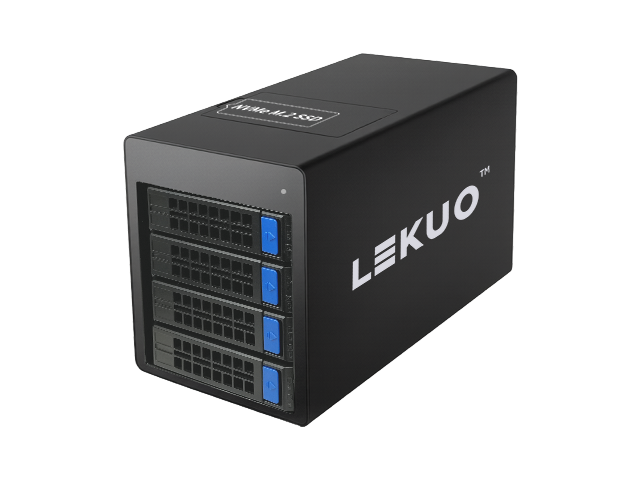

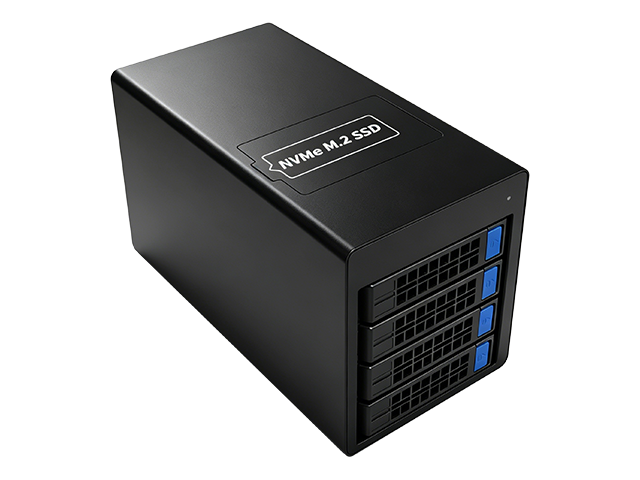

Product Overview

This product enables high-speed storage expansion via two Type-C 40Gbps ports. It is a high-performance storage expansion device that integrates four mechanical hard drive/SATA SSD bays, one NVMe SSD bay, and dual USB4 ports (40Gbps). The all-aluminum alloy chassis provides excellent thermal performance and structural strength. It supports the 40Gbps USB4 high-speed bus, with all internal drives and expansion ports sharing the total bandwidth, thereby delivering a flexible and efficient storage and expansion solution.

Features

• M.2 NVMe slot (supports PCIe 3.0 x4)

• 4 x SATA 6Gbps ports (supports SATA SSD/HDD)

• Dedicated Type-C 40Gbps bandwidth for NVMe drives

• 4 x SATA drives share USB 10Gbps bandwidth

• Built-in USB 10Gbps to SATA controller chip

• Supports hot-swap (SATA drives)

• Supports power management and overload protection

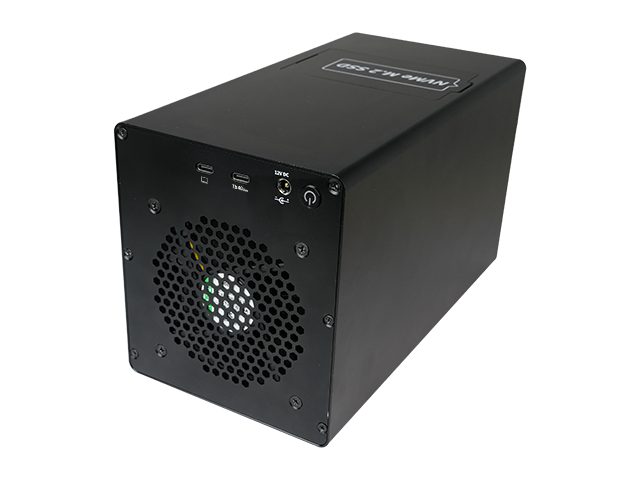

• 2 Type-C 40Gbps ports (supports video, data, charging)

• Supports full-speed operation of NVMe drives

• Supports hot-swap and hot-swap replacement for SATA drives

• Supports AHCI and NVMe protocols

• Supports system sleep wake-up and power-saving modes

System Requirements

• MacOS (10.15 and above)

• Windows 10 / 11

• Linux (Kernel 5.4 and above, requiring support for USB4/Thunderbolt 3/4/5)

• Host device must have a Type-C 40Gbps port (compatible with USB4/Thunderbolt 3/4/5)

Package Contents

• 1 x Storage Enclosure

• 1 × User Manual

• 1 × 12V 10A Power Adapter

• 1 × Type-C 40Gbps Cable

• 24 × Hard drive mounting screws
