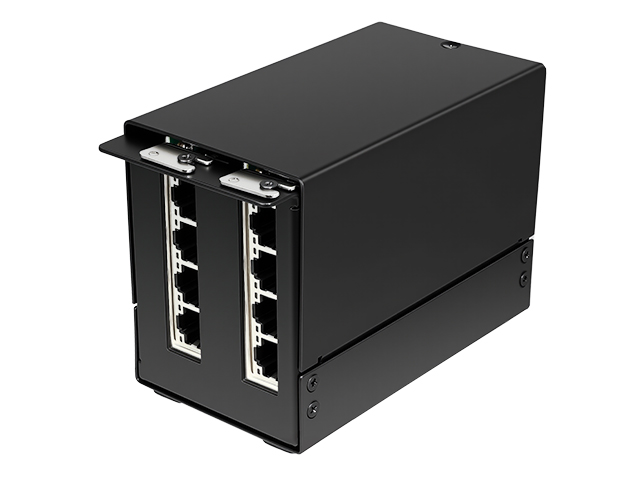

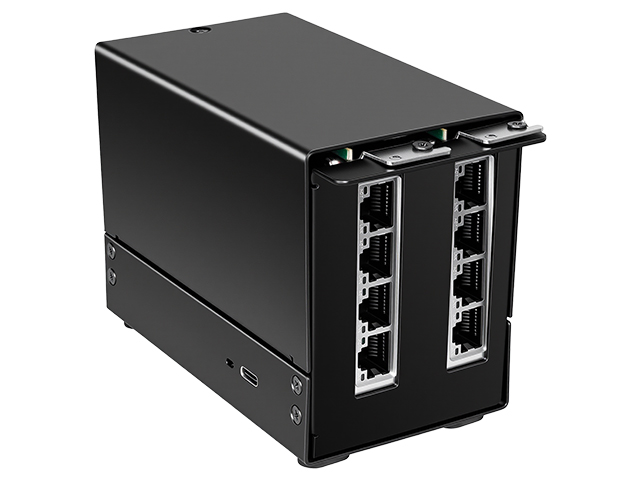

Product Overview

This product expands two independent PCIe x4 slots through a single USB4 interface. By installing two PCIe-to-4-port Gigabit Ethernet adapters (featuring Realtek 8111H chips), the docking station transforms into an 8-port Gigabit Ethernet expansion device. It supports scenarios such as multi-port network access, network testing, server virtualization, software-defined routing, and network storage, delivering high-speed, stable network expansion capabilities.

Features

• Plug-and-Play: USB4 technology enables operation without driver installation on mainstream operating systems.

• High Performance: Single device delivers 40Gbps bandwidth.

• Dual-Device Concurrency: Supports simultaneous use of two PCIe devices, sharing the USB4 40Gbps bandwidth limit.

• Requires external power supply and 40Gbps cable.

• Total speed shared across 40Gbps bandwidth when two devices operate simultaneously.

• Integrated 10/100/1000M transceiver

• Supports Giga Lite (500M) mode

• Auto-negotiation with next-page capability

• Supports PCI Express 1.1

• Supports switch/polarity/skew correction

• Cross-detection and auto-correction

• Supports 1 channel 2.5Gbps PCI Express bus

• Supports hardware ECC (Error Correction Code) functionality

• Supports hardware CRC (Cyclic Redundancy Check) functionality

• On-chip transmit/receive buffer support

• Supports PCI MSI (Message Signaled Interrupt) and MSI-X

• Fully compliant with IEEE802.3, 802.3u, and 802.3ab

• Supports IEEE 802.1P Layer 2 priority encoding

• Supports 802.1Q VLAN tagging

• Supports IEEE 802.3az-2010 (Ethernet Energy Efficiency)

• Supports full-duplex flow control (IEEE 802.3x)

• Supports jumbo frames up to 9K bytes

• Supports Receive-Side Scaling (RSS)

• Supports protocol offload (ARP & NS)

• Supports Microsoft WPI (Wake-on-Packet Indication)

Supports ECMA-393 ProxZzzy standard for dormant hosts

System Requirements

• Windows 10/11, Linux

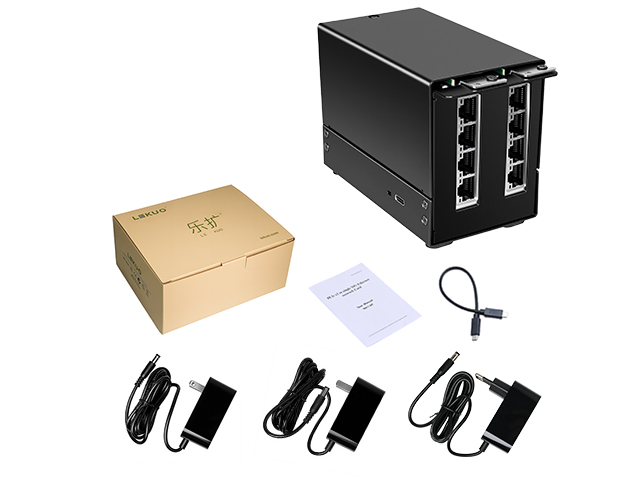

Package Contents

• 1 × USB4 40G to 8x 1G Ethernet Adapter

• 1 × 12V 3A Power Adapter

• 1 × 40Gbps Data Cable

• 1 × User Manual

Note: Contents may vary by country/market
