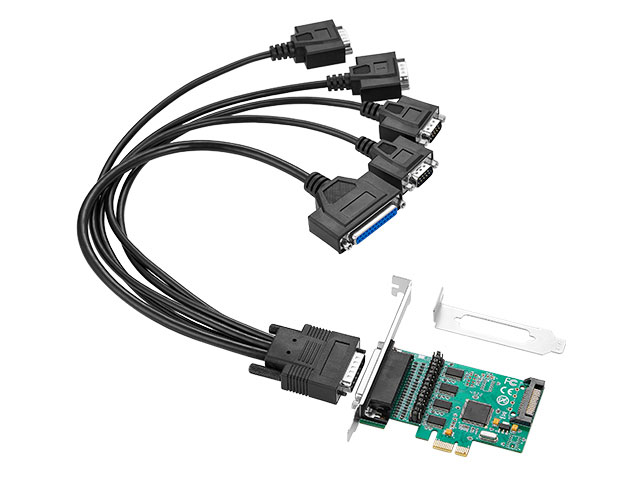

Features

1). PCI Express

• Single-lane (X1) PCI Express End-point Controller with PHY integrated

• Compliant with PCI Express 2.0 Gen 1

• Compliant with PCI Express card specifications

• Compliant with PCI Power Management 1.2

Please note some sections of the manual are only applicatable for the production that have such functions.

2). Serial Port

• Four independent UARTs, compatible with 16C550, 16C552, 16C554 and 16C750 with enhanced

• Supports 5, 6, 7 or 8-bit Serial format and 1 or 2 stop bits

• Supports Odd, Even, None, space 0 and mark 1 parity, etc

• Supports 256-bytes FIFO buffer, supports 4 FIFO trigger layers

• Supports CTS, RTS to realize auto handshake and auto transmit speed control, compatible with TL16C550C

• Supports serial frame error check, and Break circuit interval check

• Provides RS-232 serial ports with +5 or +12 VDC power output via COM 1st or 9th pin

• Operating temperature range: -40 to +85°C

• Storage temperature range: -55 to +125°C

3). IEEE1284 Parallel Port

Supports such as SPP, Nibble, Byte, PS/2, EPP and ECP etc IEEE1284 parallel/ printer port modes.

Supports bi-directional data transmission, the transfer speed can up to 1M Byte/S.

2. Installing the PCI Express I/O card to your computer

1). Turn off your computer and all devices connected to it.

2). Remove the Computer’s cover, Refer to your computer user’s manual for more details.

3). Find an unused PCI Express’s slot and remove the metal bracket. Save the bracket screw for later use.

4). Align the card horizontally with respect to the PCI slot and insert it into the slot. Once you have properly positioned the PCI Express I/O card into the slot. secure the PCI Express I/O card with the bracket screw you have saved.

6). Replace the computer’s cover.

Applications

• Serial Attached Devices

• Serial Networking/Monitoring Equipment

• Data Acquisition System

• POS Terminal & Industrial PC

• Add-On I/O Cards -Serial /USB

• Embedded systems - For I/O expansion

System Requirements

• Windows 98/Me/2000/XP/Vista/7/8/8.1/10/SERVER 2003/2008/2012/2016 and Linux
