Product Overview

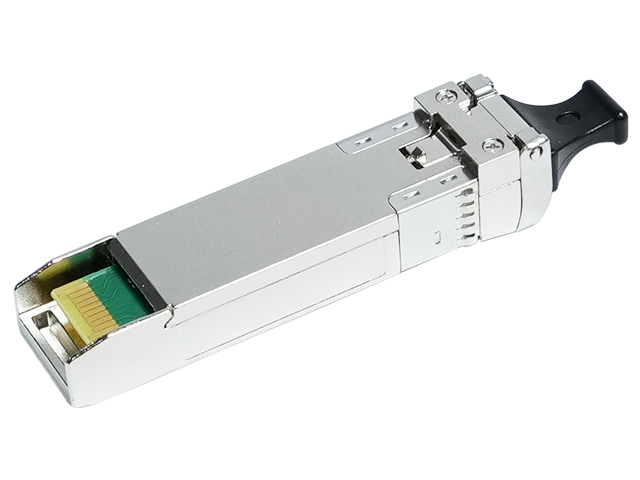

This 10G single-mode dual-fiber optical module adopts high-performance optical design, specifically engineered for long-distance data transmission up to 10 km. Compliant with the SFP+ industry standard, it delivers a stable and reliable 10 Gigabit Ethernet connectivity solution, suitable for various scenarios including data centers, enterprise networks, and telecommunications applications.
Core Features
• High-Speed Transmission: Supports 10Gbps data rate to meet high-bandwidth demands
• Long-Distance Coverage: Maximum transmission distance of 10 km
• Superior Optical Performance: 1310nm center wavelength with low power consumption and high sensitivity
• Durable Construction: Zinc alloy shell with hard gold electroplating, offering oxidation resistance and wear protection
• Easy Installation: Hot-pluggable design requiring no additional software
• Broad Compatibility: Fully compatible with mainstream switches and network equipment
Technical Specifications

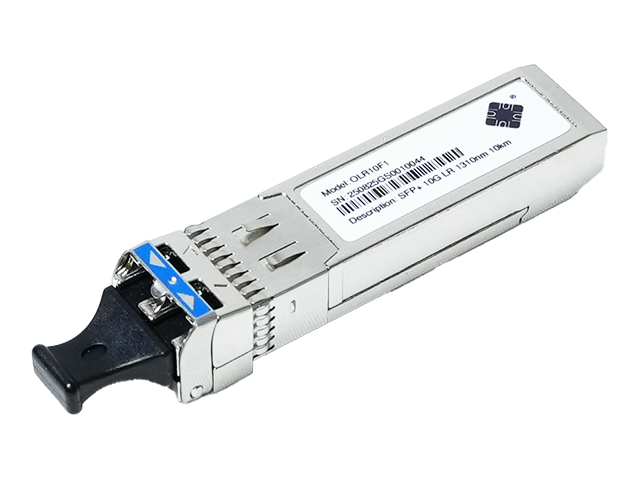

•Model: OLR10F1
•Interface Type: Dual LC Small Form Factor (SFF) Port
•Data Rate: 10Gbps
•Transmission Distance: 10km
•Center Wavelength: 1310nm
•Optical Power: -8.2~0.5dBm
•Receiver Sensitivity: -10.3dBm (Typical)
•Form Factor: SFP+ standard dimensions

•Operation Temperature :0°C ~ 70°C

•Storage Temperature： -40°C ~ 85°C

Design Highlights
• Hard Gold-Plated Shell: Crafted from zinc alloy via mechanical lathing and die-casting, with electroplated surface for oxidation resistance, durability, heat dissipation, and burn protection
• Reinforced Interface: Sturdy connection design ensures plug-and-play durability and stable linkage
• Plug-and-Play: No software installation required; simple and fast device connectivity
Application Scenarios
• Data center server connections
• Long-distance enterprise campus network interconnections
• Telecommunications transmission equipment
• Campus network backbone links
Package Contents
• 1× 10G SFP+ LC Single-Mode Optical Module
