Product Overview

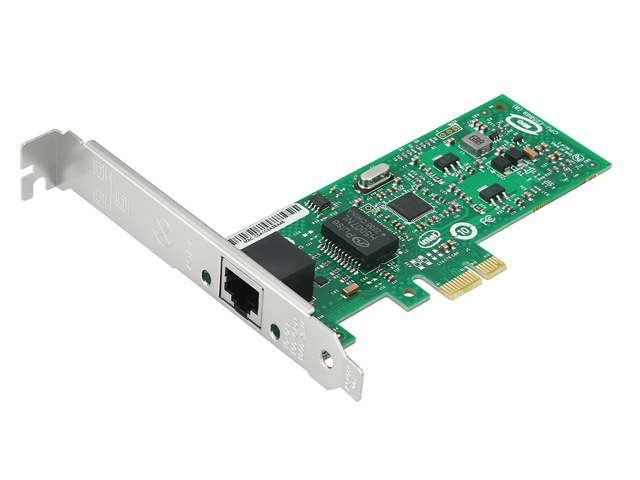

This is a single-port Gigabit network card based on the Intel 82574 chip, designed with a PCIe x1 interface to meet high-performance network transmission requirements. Equipped with an original Intel Gigabit Ethernet controller, it delivers stable and reliable network connectivity with low power consumption (only 1.42W) and low latency. It supports 10/100/1000Mbps auto-negotiation, is compatible with full/half-duplex modes, and significantly reduces CPU usage.

Features

• Interface: PCIe x1

• Port: RJ45 × 1

• Speed: 10/100/1000M auto-negotiation

• Chip: Intel 82574

• Power Consumption (MAX): 1.42W

• PCIe Bus: PCI Express v1.1 (2.5GT/s) X1

• Ethernet Power Management: Yes

• PXE Support: Yes

• PCI-SIG* SR-IOV Support: Yes

• Virtual Machine Device Queue (VMDq): Yes

• IPv4/IPv6 Support: Yes

• RSS Support: Yes

• Jumbo Frame Support: Yes

• LED Indicators:

• 1000Mbps: Orange light on * Green light flashing

• 100Mbps: Green light flashing

• Operating Temperature: 0°C to 55°C (32°F to 131°F)

• Storage Temperature: -40°C to 70°C (–40°F to 158°F)

• Operating Humidity: 5% to 90% non-condensing relative humidity

• Storage Humidity: 5% to 90% non-condensing relative humidity

• Original Intel Chip: Equipped with Intel 82574 Gigabit Ethernet controller, ensuring stable performance, low latency, and low power consumption

• Broad Compatibility: Supports mainstream systems including Windows XP/7/8/10, Windows Server, Linux, CentOS, Ubuntu, FreeBSD, VMware, and more

• High-Speed Stable Transmission: Supports 1.25Gbps speed, full/half-duplex auto-negotiation, and reduces CPU usage

• Wiring Cost: Compatible with various twisted-pair cables, eliminating the need for rewiring

• Multi-Scenario Applicability: Suitable for cloud computing, machine vision, industrial automation, education, medical, and other fields

System Requirements

• Windows XP/7/8/10, Windows Server, Linux, CentOS, Ubuntu, FreeBSD, VMware, and other systems

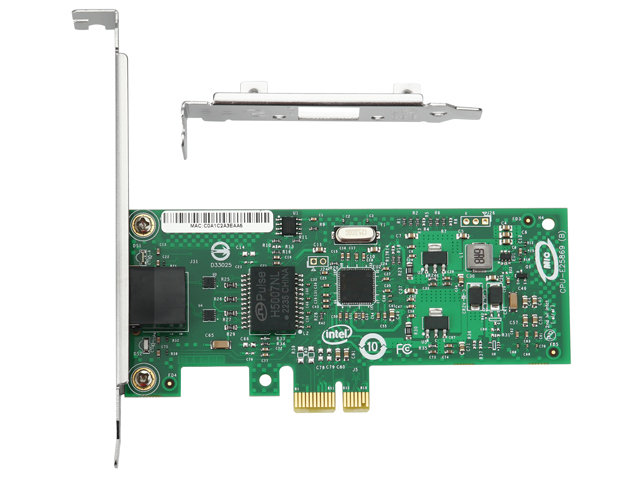

Package Contents

• 1 x Network Card

• 2 x Short Brackets
