Product Introduction

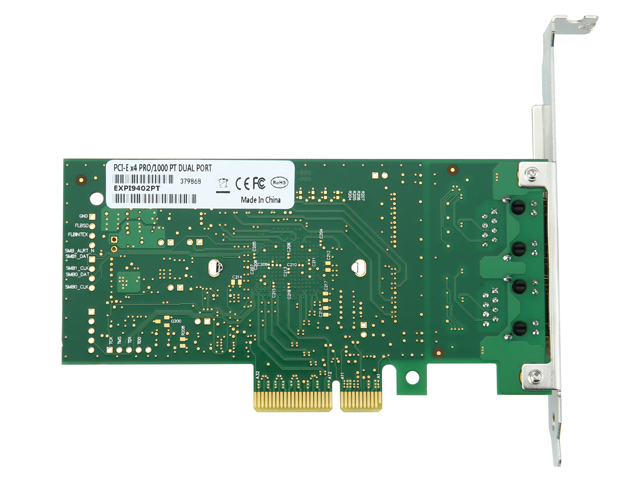

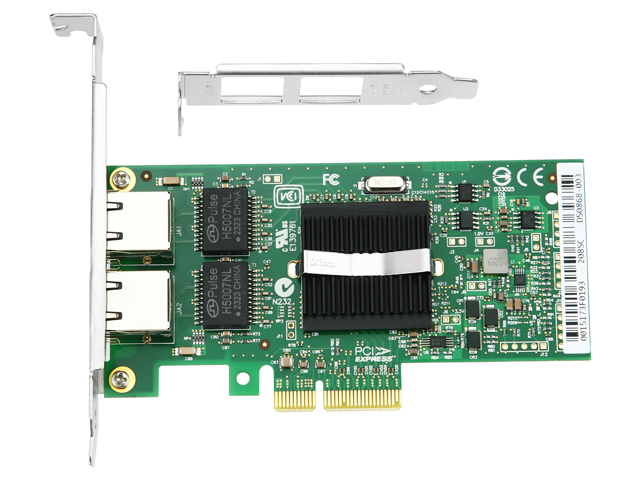

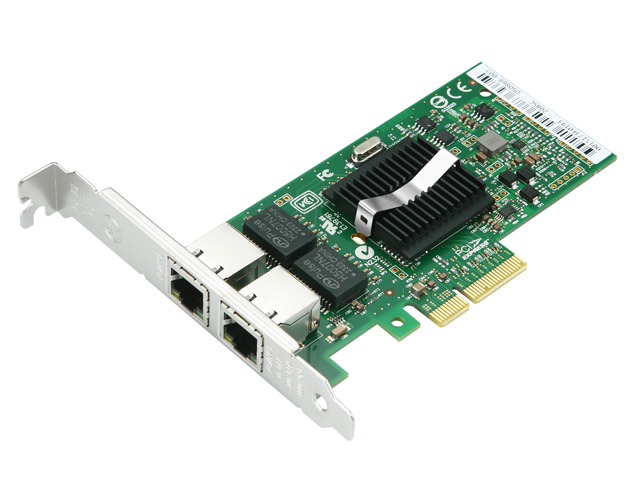

• The PCIe to Dual-Port Gigabit Server Network Card adopts the Intel 82571 enterprise-grade chip, providing 2 independent Gigabit RJ45 interfaces. It is suitable for high-performance network environments such as servers, industrial computers, and virtualization platforms. It supports PXE diskless boot, VLAN aggregation, and DPDK acceleration, and features offload processing technology, significantly reducing CPU usage and improving data transmission efficiency.

Features

• Chip: Intel 82571

• Power Consumption (MAX): 3.2W

• Applicable Scope: Industrial computers, servers, etc.

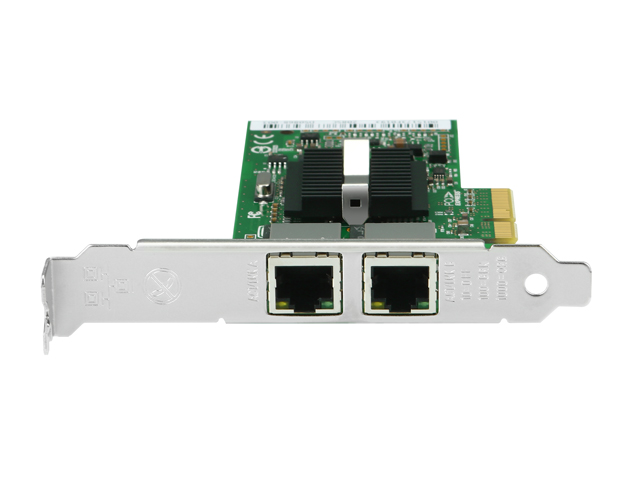

• Interface Type: 2 × RJ45 interfaces

• PCI-E Bus: PCI Express v2.0 (5.0 GT/s) X4, compatible with X4, X8, and X16

• Port Speed: 10/100/1000Mbps auto-negotiation

• Bracket Height: Full-height and half-height

• Dual-Mode Indicator: LED lights display 10/100/1000Mbps status

• Supports PXE

• Supports DPDK

• Does not support WOL

• Does not support iSCSI jumbo frames

• Does not support PCOE

• Full-duplex/half-duplex mode auto-switching

• Each network port has an independent MAC address

• Offload acceleration processing, reducing CPU resource usage

• LED Indicators:1000Mbps: Orange steady + green blinking；100Mbps: Green steady + green blinking；10Mbps: Green blinking

• Supports remote (PXE) boot, VLAN aggregation, RouterOS, traffic control, soft routing, industrial switches, etc.

System Requirements

• Windows, Linux, FreeBSD, VMware, and other systems

Package Contents

• 1 × PCIe to 10/100/1000M/2.5G Ethernet card

• 1 × Short bracket
