Features
•  Support PCI Express Gen-III x4
•  Support PCI Express Base 3.1a Specification
•  Compliant with PCI Express Card Electromechanical 2.0 specification
•  Compliant with PCI Express Mini Card Electromechanical 1.2 specification
•  Compliant with PCI Bus power Management interface specification Revision 1.2
•  Compliant with PCI Local Bus specification Revision 3.0
•  Compliant with USB 3.2 Specification Rev. 1.0
•  Upstream Port supports USB 3.2 Gen2x2 (20Gbps), High-Speed and Full-Speed Connections
•  Compliant with USB Attached SCSI Protocol (UASP) Rev. 1.0
•  Support Multiple INs function
•  Support USB3.2 and USB2.0 Link Power Management
•  Support 2 ports of USB 3.2 Gen 2 Type-A and 1 port of USB 3.2 Gen 2x2 Type-C
•  USB Type-A 10Gbps Bandwidth Performance, USB Type-C 20Gbps Bandwidth Performance
•  Support the following speed data rates:1.5Mbps / 12Mbps / 480Mbps / 5Gbps / 10Gbps / 20Gbps(Only Type-C port supports 20Gbps)
•  Integrate Spread Spectrum Controller for USB3.2 interface
•  Backward compatible with Legacy USB function and device
•  No need to install drivers
•  Operation Temperature ：0 to 85°C
•  Storage Temperature：0 to 120°C

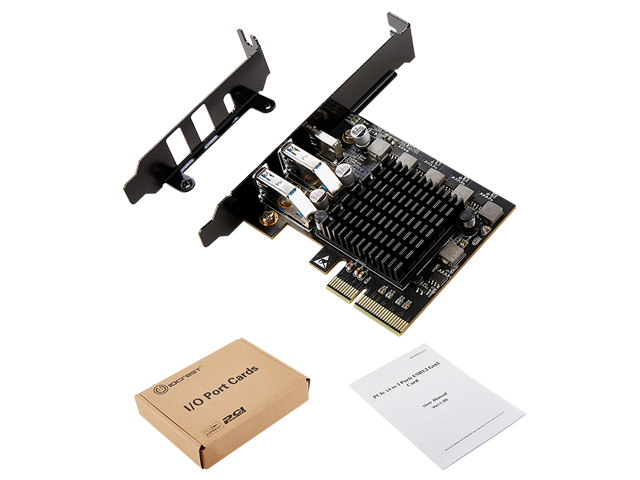

Package Contents
•  1 × PCI Express x4 to 3 Ports USB3.2 Gen2 Card
•  1 × User Manual
•  1 x Low Profile Bracket
System Requirements:
•  Microsoft® Windows and various Linux kernels and MAC 10.10.5 or later version
•  One available PCI Expressx4, x8 or x16 slots
