Features

• Support PCI Express Base Specification Rev 3.1

• Support SSD_Form_Factor_Version1_a.

• Compliant with NVM Express 1.2a

• Compliant with SFF-8643 Specification Version 3.5

• Supports four physical NVMe devices

System Requirement

• Windows 8,8.1,10 or later

• UEFI 2.3.1 or later

• Linux

• VMware

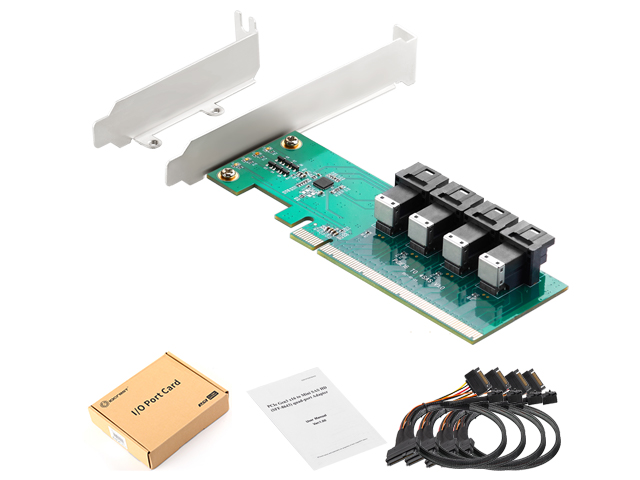

Package Content

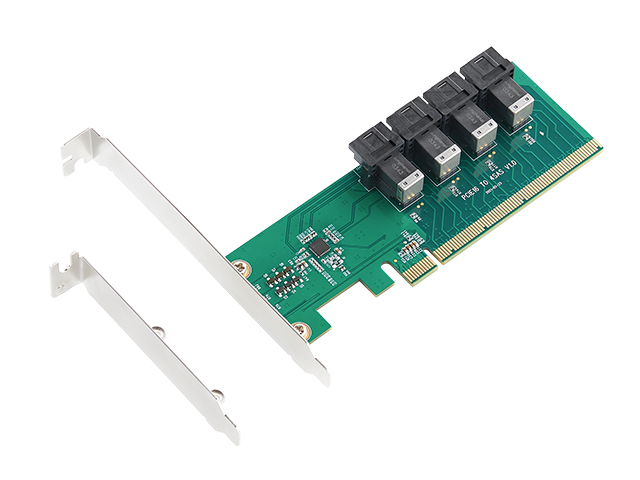

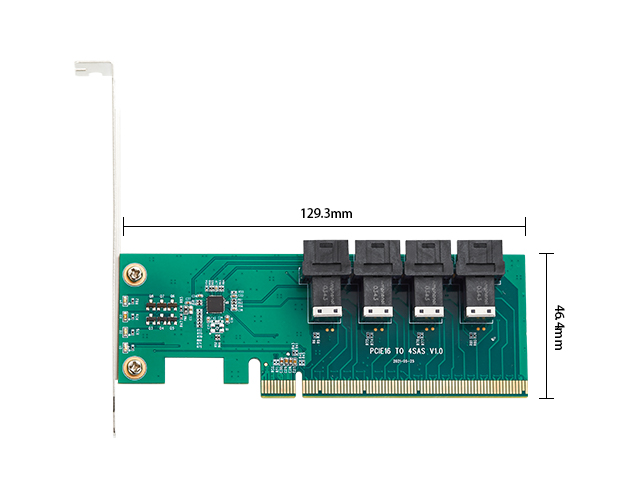

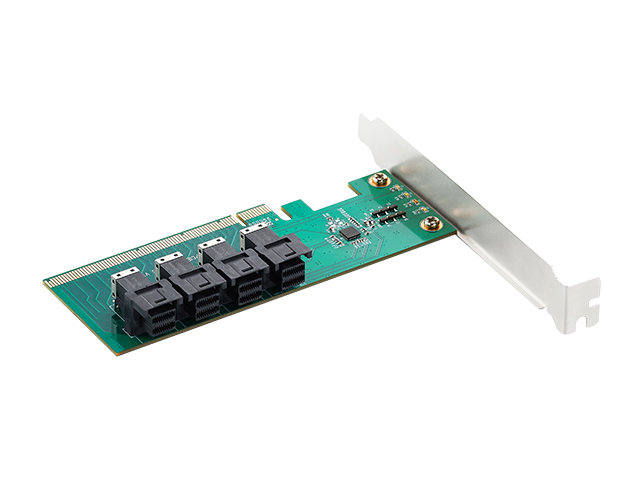

• 1 x PCIe Gen3 x16 to Mini SAS HD(SFF-8643) quad-port Adapter
• 1 x User Manual

• 1 x Low profile bracket

• 4 x SFF-8643 to U.2 SFF-8639 with 15-pin SATA Power cable(Optional)

Application

• Servers

• HBA(Host Bus Adapter)

• Data Center

• Storage Racks

• Storage Controller

• Servers RAIDs(Redundant Array of Independent Disks)

• Routers

Notice:

The Mainboard with CPU and BIOS needs to support bifurcation to eusure PCIe x16 link width to bifurcate four x4 link width for NVMe SSD.If not, only supports PCIe x16 link width.
