Features

•  Supports up to two lane of PCI Express.

•  Complies with PCI Express Base Specification Revision 3.1a.

•  Compliant with Serial ATA Port Multiplier Spec. Revision 1.2

•  Compliant with Serial ATA Port Selector Spec. Revision 1.0

•  Compliant with Serial ATA PHY Electrical Spec. Revision 1.0

•  Complies with SATA Specification Revision 3.2

•  Supports PCIe link layer power saving mode.

•  Supports 24-port 6Gb/s SATA III interface.

•  Supports Port Multiplier

•  Supports command-based and FIS-based for Port Multiplier.

•  Supports AHCI mode and IDE programming interface.

•  Supports Native Command Queue (NCQ).

•  Supports SATA link power saving mode (partial and slumber)

•  Supports SATA plug-in detection capable.

•  Supports drive power control and staggered spin-up.

•  Supports SATA Partial / Slumber power management state.

Note:Don’t support system boot disk

System Requirements

•  Windows OS

•  Linux-base OS

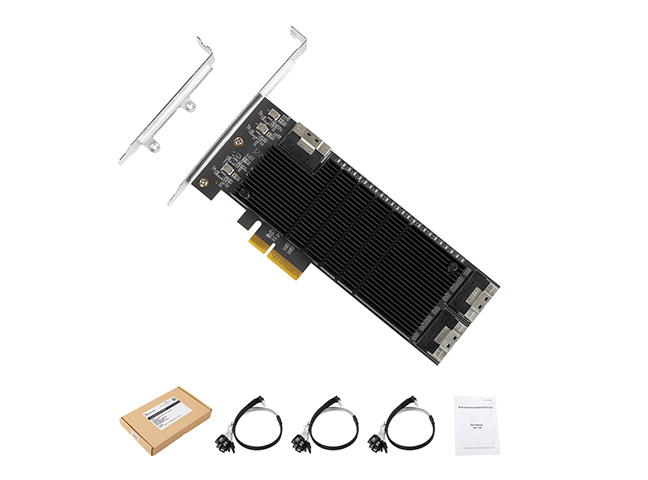

Package Contents

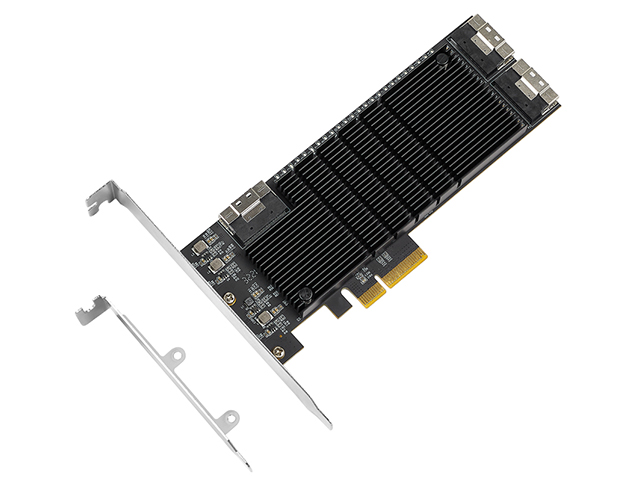

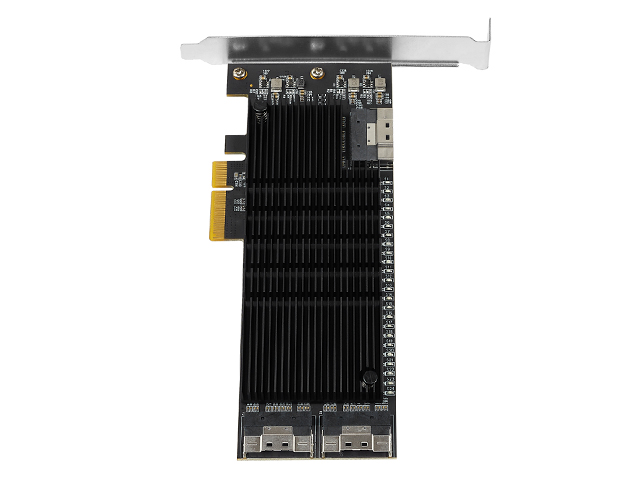

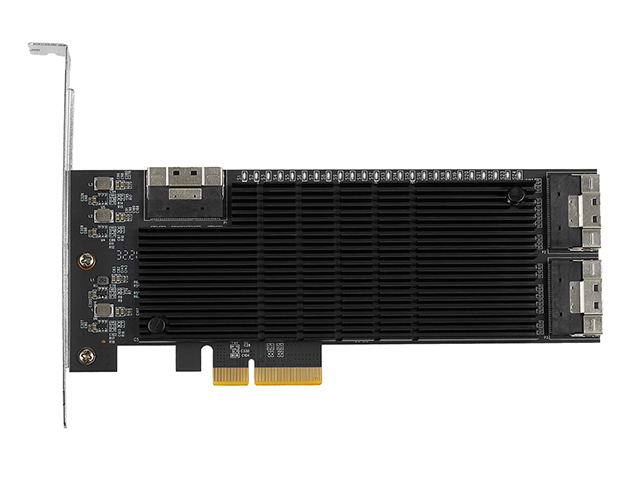

•  1 × PCIe Gen3x4 to 24 SATA 6Gb/s Card

•  1 × User Manual

•  3 × Slim SAS SFF-8654 8i 74P to 8*SATA Cable

•  1 x Low Profile Bracket

Note: Contents may vary depending on country/market
