Features

•1-Lane M.2 PCI-Express 2.0 interface (B + M Key).

•Support communication speed of 2.5Gbps and 5.0Gbps.

•Compliant with Bus Master Programming interface for IDE ATA Controllers Revision 1.0.

•Compliant with Serial ATA AHCI (Advanced Host Controller Interface) Specification Rev 1.3.

•Support Message Signaled Interrupt(MSI).

•Serial ATA Revision 3.2.

•Support communication speed of 6.0Gbps,3.0Gbps,1.5Gbps.

•Support programmable transmitter signal levels.

•Supports 1i/1m/2i/2m/3i SATA PHY.

•Supports Native Command Queuing (NCQ)

•Supports Port Multiplier command based switching.

•Supports RAID0, RAID1, SPAN

•Note: Not Supported RAID on PM

•Supports Hot Plugging on SATA port

•Supports automatic rebuild

•Supports S.M.A.R.T feature

•Windows built-in driver

System Requirements

•Windows Server 2008,2012,2016

•Windows Vista, 7, 8,8.1,10

•Linux 2.6.20 and above

•Mac OS 10.3 or later version

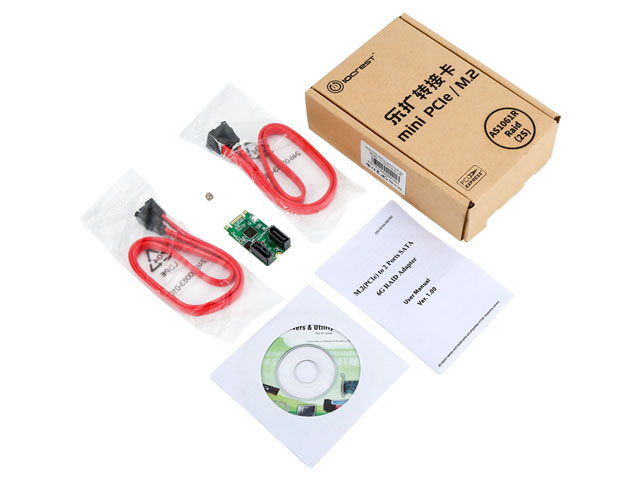

Package Contents

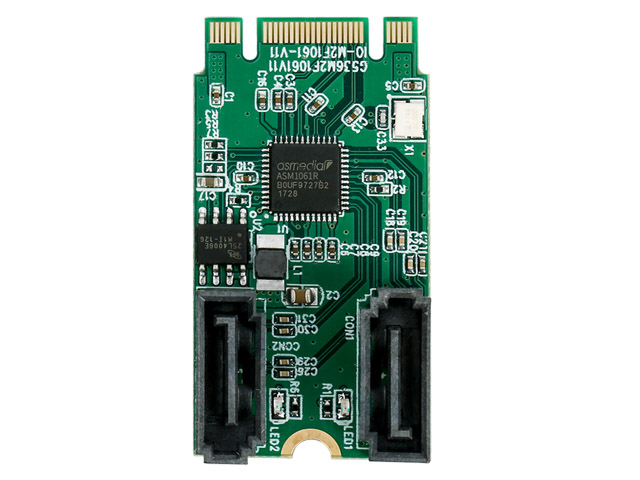

1 x M.2(PCIe) to SATA 6G adapter

1 x User Manual

1 x SATA Cable

Note: Contents may vary depending on country and market.
