Features
•Support existing CAT-5 UTP cabling with automatic crossover detection
•Fully compliant with PCI-Express Base Specification Revision 1.1
•Single-Lane (x1) PCI-Express with throughput up to 2.5Gbps
•Compatible with PCI-E Mini Card Electromechanical specification revision 1.2
•Compatible with Half size Mini card type form factor
•Fully Plug and Play compatible
•A high performance 1000BASE-T Ethernet controller card
•Backwards compatible to 10/100BASE-T networking
•10/100/1000Mbps data rate auto negotiation operatio
•Compatible to existing CAT-5 UTP cabling
•Fully compliant with IEEE 802.3, 802.3u, 802.3ab
•Supports full duplex flow control (IEEE 802.3x)
•Supports IEEE 802.1P Layer 2 Priority Encoding
•Supports IEEE 802.1Q VLAN tagging
•Supports jumbo frame to 9K bytes
•Crossover Detection and Auto Correction operation
System Requirements
•Windows ME,98SE, 2000, XP, Vista, 7 and 8 32-/64-bit
•Windows Server 2003, 2008 and 2012 32 -/64-bit
•Linux, DOS MAC OS X 10.4.X or above

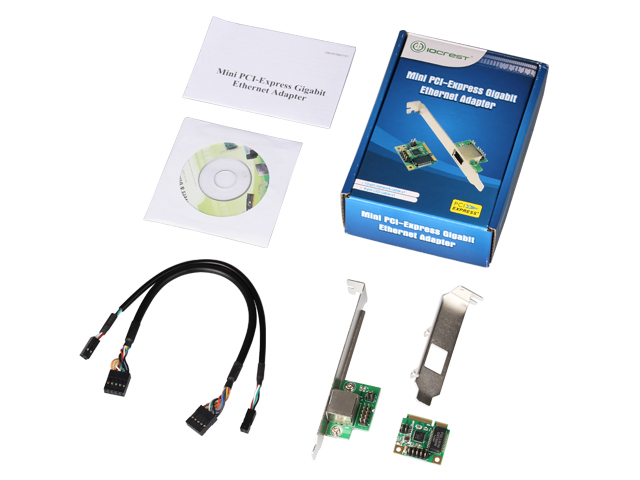

Package Contents

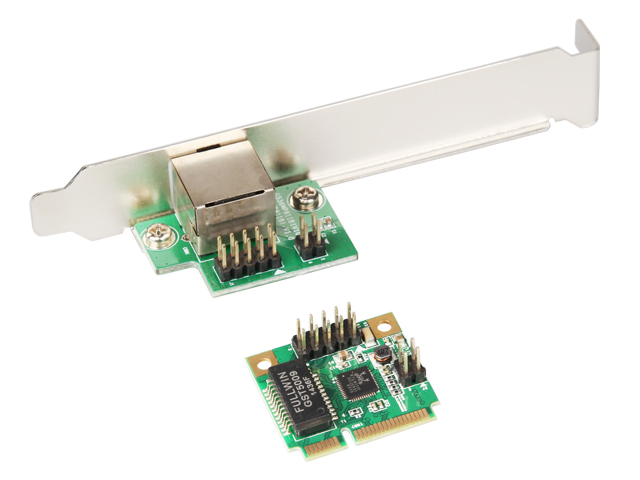

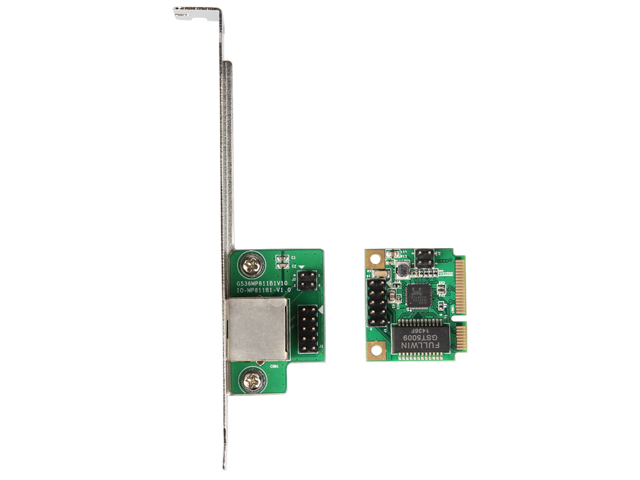

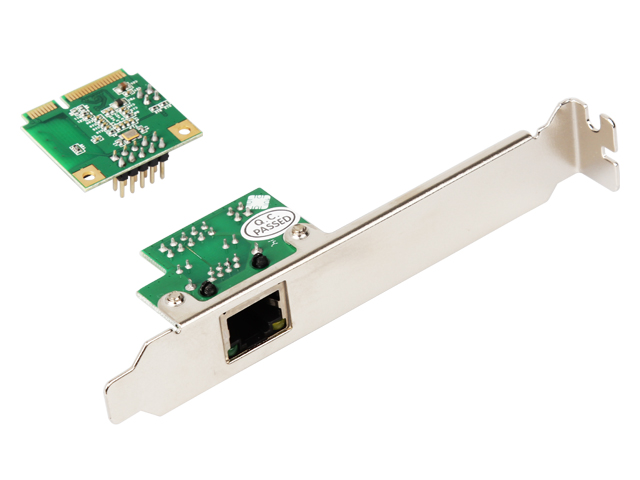

•1 x Gigabit Ethernet Mini PCI-Express Card - Main card
•1 xGigabit Ethernet Mini PCI-Express Card - Daughter card
•1 xUser manual
•1 xDriver CD
•1 x10-pin network cable
•1 x4-pin LED cable
