Specifacation

• WCH382 Chipset

• Fully Compliant with PCI-Express Base Specification, Revision 1.0a

• PCIe Multi Function Peripheral Controller with x1 Lane Interface

• Support for D1, D2, D3hot and D3cold

• Supports PCIe Power Management

• Serial Ports:

• 16C450/550/Extended 550 Compatible UARTs

• Supports RS232, RS485 & RS422 Modes

• Bi-directional Speeds from 50 bps to 16Mbps/Port

• Full Serial Modem Control

• Supports Hardware, Software Flow Control

• 5, 6, 7, 8 and 9-bit Serial Format Supported

• Even, Odd, None, Space & Mark Parity Supported

• Custom BAUD Rates Supported with External Clock or by Programming Internal PLL

• On Chip 256 Byte Depth FIFOs in Transmit, Receive Path of Each Serial Port

• Supports Remote Wake-up and Power Management Features

• Serial Port Transceiver Shutdown Supported

• Supports Slow IrDA on All Serial Ports




Package detail

Package Info

• Dimension: L 7 x W 5.5 x H 1.5 inch

• Weight: 0 lb

• UPC: 810154012657




Package Includes

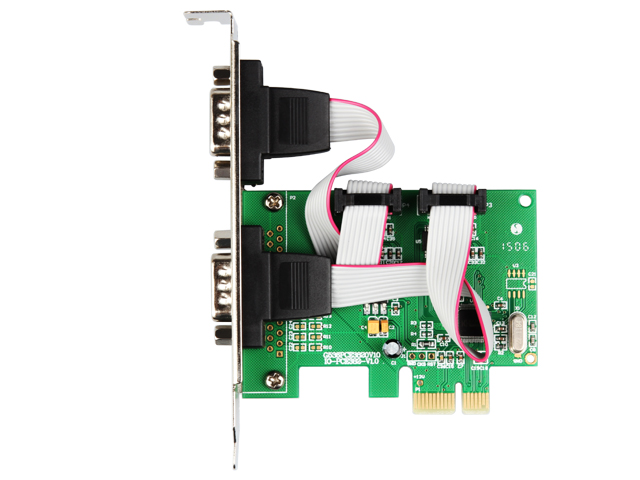

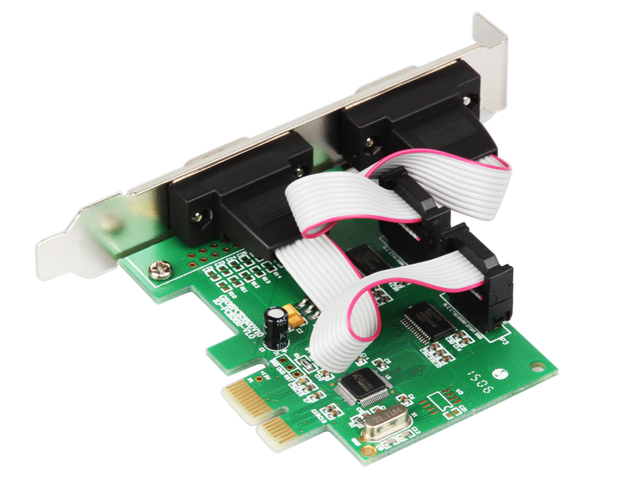

• 2-port Serial PCI-Express Card

• CD Driver

• User Manual




Software requirement

• Windows 7 32/64-bit

• Vista 32/64-bit

• Windows XP 32/64-bit

• Windows 2000

• Linux Kernel 2.6.11 & Above

• Mac 10.4 & Above
