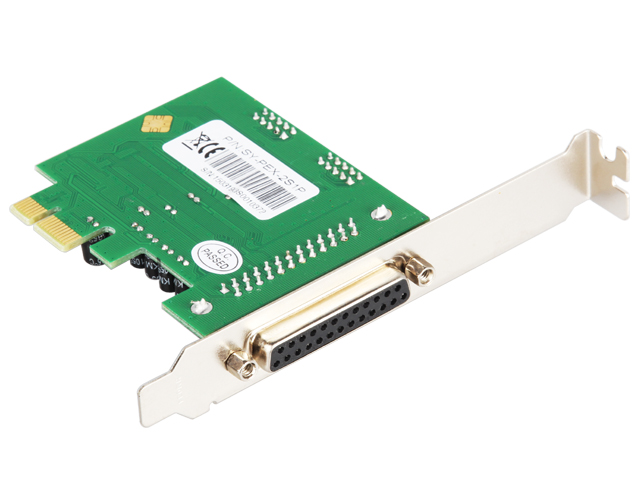

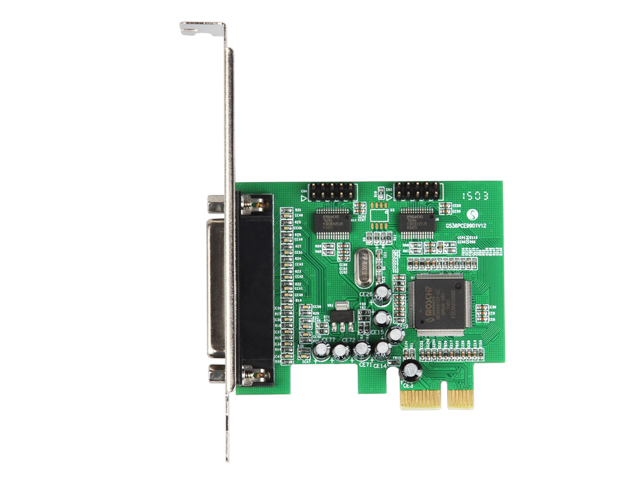

Extend one DB25 parallel port in PC with PCI-Express slot,Parallel port's transmission rate as high as 1.5Mbyte /s,Compatible IEEE 1284 printer port.
ModelMM-PCE9901-2S1P
Input InterfacePCIe
Output InterfaceRS232
Motherboard SlotPCIe
Transmission Rate1.5 MBMbyte/s
Auxiliary AccessoriesLow Profile Bracket,Driver CD
Product Size85x67mm
Functional description
Extend one DB25 parallel port in PC with PCI-Express slot
Parallel port's transmission rate as high as 1.5Mbyte /s
Compatible IEEE 1284 printer port
Specification
Accord with PCI - Express 1.0 a norms
PCI-Express rate 2.5 Gb/s full duplex channel
One SPP, PS2, EPP, ECP compatible IEEE 1284 printer port
High speed data transfer rate as high as 1.5 MBMbyte/s
Built-in 256 bytes FIFO
Supports plug and play
System requirements
At least has an available PCI - Express x1slot in PC
Druver supports Windows /10/xp/server 2003/xp 64位/ Vista, Linux, Dos
Chipset: MosChip MCS9901
