Specification

•  Host Interface: PCIe Gen2.0 x16

•  Network Interface: 2x25 GbE (compatible with 25/10/1 GbE rates)

•  Input Voltage: 12V

•  Typical Power Consumption: 13.5W

•  LED Indicators: LINK (steady) and ACTIVITY (blinking), LINK SPEED (green = 100/25GbE, orange = 10/1GbE)

•  VirtIO Acceleration: Supports versions 1.0/1.1, supports vDPA

•  SR-IOV: Up to 512 VFs, up to 8 PFs, default 1 PF per physical port

•  Network Virtualization and Tunneling: Encapsulation and decapsulation of VXLAN, NVGRE, Geneve, hardware stateless offloading of NVO3 tunnels

•  SDN Acceleration: Bare metal, virtual machines, containers

•  OVS Data Plane Hardware Offloading

•  Flow Table Updates via RTE_Flow or TC_Flower

•  Flexible Packet Classifier Parser: User-defined

•  Hardware Offloading: Connection tracking (Layer 4 firewall), NAT, packet header rewrite, mirroring, flow aging, hierarchical QoS, flow-based statistics

•  RoCE v2

•  DCQCN

•  iSER, NFS RDMA, NVMe-oF, SMB Direct

•  Online Hardware IPsec Encryption and Decryption: AES-GCM: 128/256-bit, SM4-GCM: 128-bit

•  Online Hardware TLS Encryption and Decryption: AES-GCM: 128/256-bit, SM4-GCM: 128-bit

•  Platform Security: Secure firmware upgrade

•  TCP and UDP Offloading

•  LSO and Checksum Offloading

•  Receive Side Scaling (RSS)

•  Transmit Side Scaling (TSS)

•  Receive Flow Steering (RFS)

•  NC-SI, MCTP over SMBus, MCTP over PCIe

•  Platform Level Data Model (PLDM)

•  I2C Interface for Device Control and Configuration

•  Ethernet-based Remote Boot

•  iSCSI-based Remote Boot

•  UEFI and PXE

•  Supports: 802.1Q VLAN, SR-IOV, QoS, DPDK, PXE, RoCEv2, vDPA-net, Flow Offload, IPSec/TLS, Offload, Mirror

•  Operating Temperature: 0°C to 55°C

•  Storage Temperature: -40°C to +65°C

•  Operating Humidity: 5% RH to 85% RH

•  Storage Humidity: 5% RH to 95% RH

System Requirements

•  win10，11，windowsserver 2019，2022，linux

Package Contents

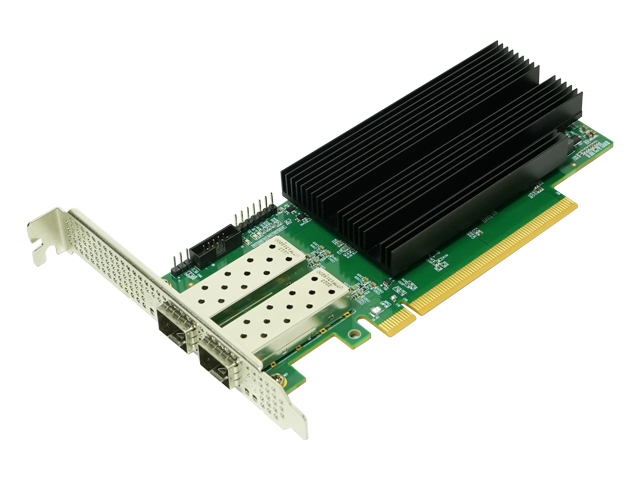

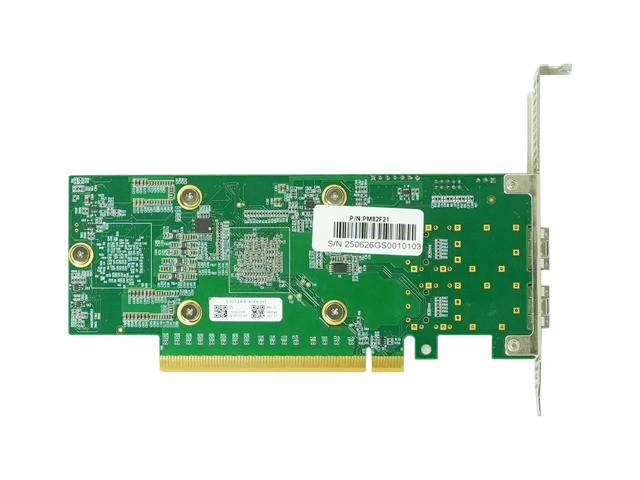

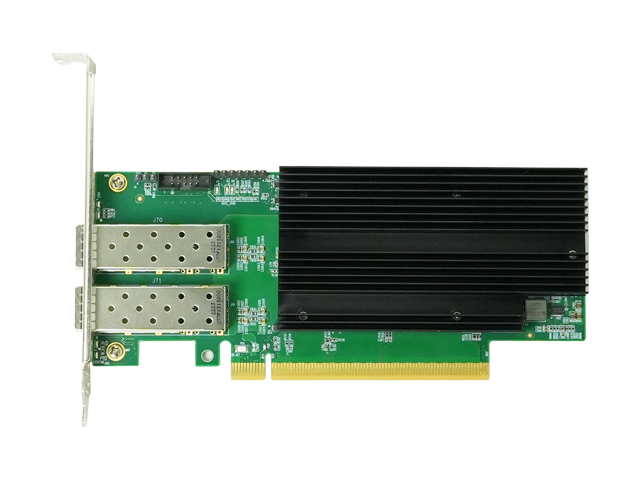

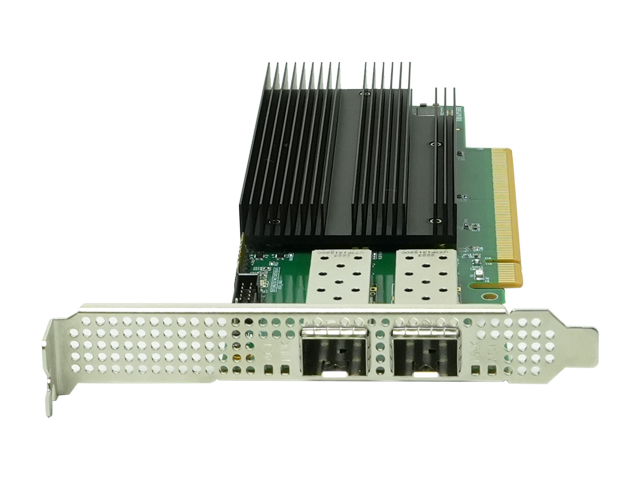

•  1 x PCle to 2 Port SFP28 25G Ethernet Network Card

•  1 x Low-profile bracket
