Features

•  Supports bus widths: Gen4 x1, Gen3 x4, x2, x1

•  Support PCI Express Gen-III x4

•  Supports line rates up to 16.0 GT/s, 8.0 GT/s, and 5.0 GT/s per lane

•  Jumbo frame support up to 16 KB

•  Support 10G/5G/2.5G/1000M/100M LAN speed

•  2.5W typical 10GBASE-T operating power per port: 100 meters of Cat 6A

•  1.5W typical 5GBASE-T operating power per port

•  1W typical 1GBASE-T operating power per port

•  Audio Video Bridging (AVB) and PTP/1588v2

•  Synchronous Ethernet (Sync-E), ITU-T standard in accordance with IEEE

•  Supports Message-Signaled Interrupts (MSI and MSI-X), and legacy INTx PCIe interrupts

•  Support for the Network Controller Sideband Interface (NC-SI)

•  Management Component Transport Protocol(MCTP)

•  IEEE 802.3an 10 Gbit/s Ethernet over unshielded twisted pair

•  IEEE 802.3bz 2.5/5GBASE-T

•  IEEE 802.3ab 1000BASE-T Gigabit Ethernet

•  IEEE 802.3u 100BASE-TX Fast Ethernet

•  IEEE 802.1Q VLANs

•  IEEE 802.3x Full Duplex and flow contro

•  IEEE 802.3az - Energy Efficient Ethernet (EEE)

•  Support Preboot Execution Environment (PXE)

•  FCoE No

•  Operation Temperature :0°C to +108°C；

•  Storage Temperature：-40°C to +110°C

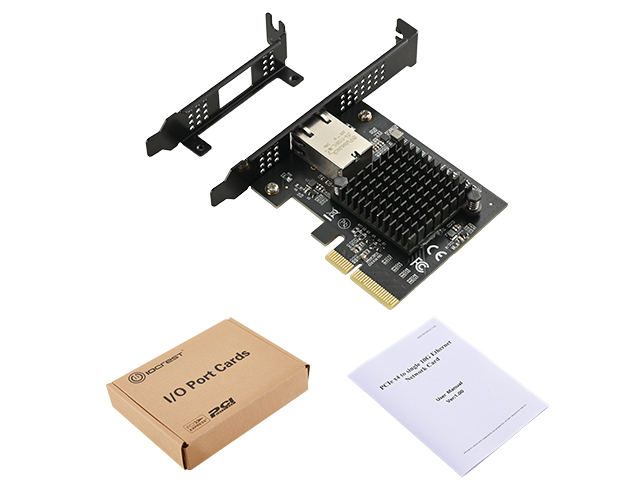

Package Contents

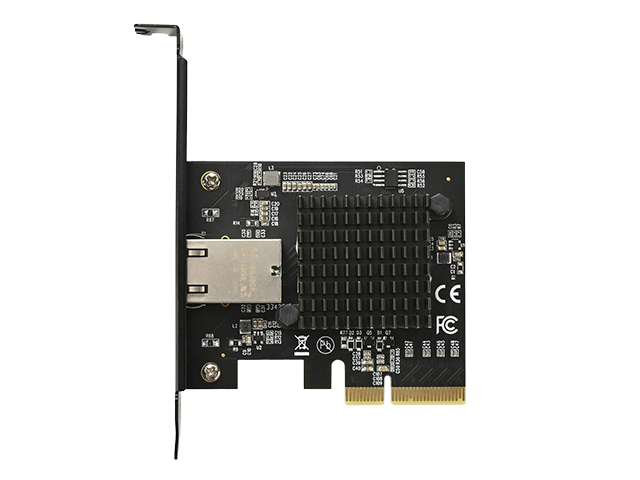

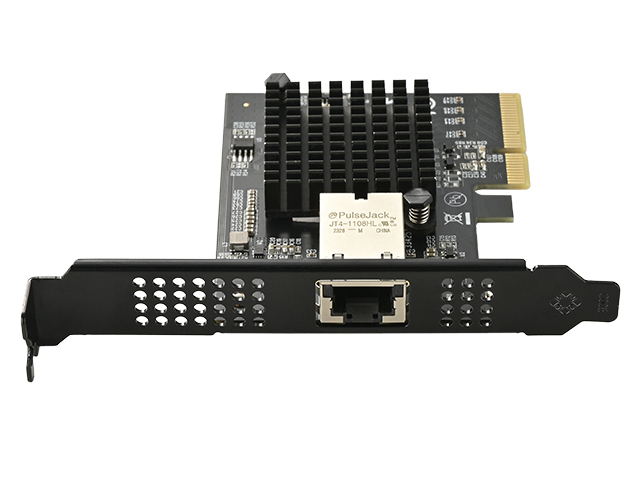

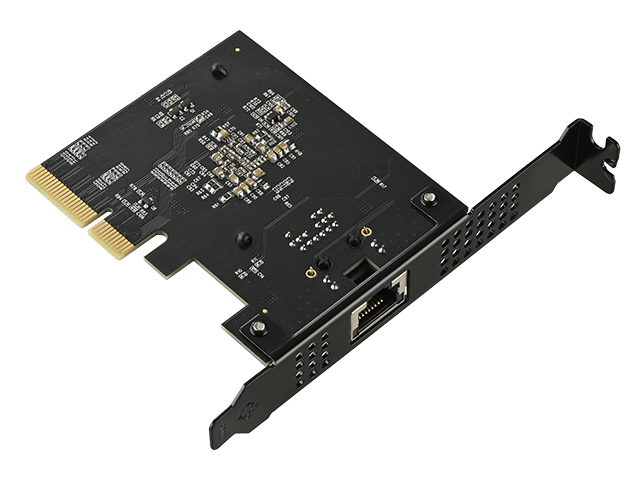

•  1 × PCIe x4 to single 10G Ethernet network Card

•  1 × User Manual

•  1 x Low Profile Bracket

System Requirements:

• Microsoft® Windows®, 10/11 ,Server 2022

• RHEL/Centros7.3/7.6/7.9/8.2/8.3

• Deepin 15.11/20/20/20.6

• Ubuntu 16.04.3/18.04.5 and later releases
