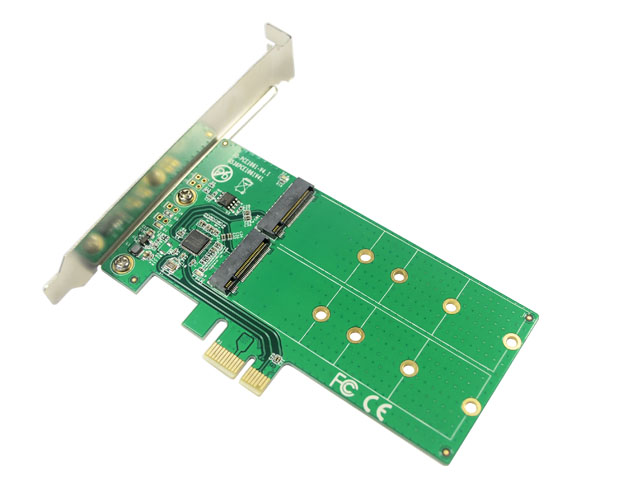

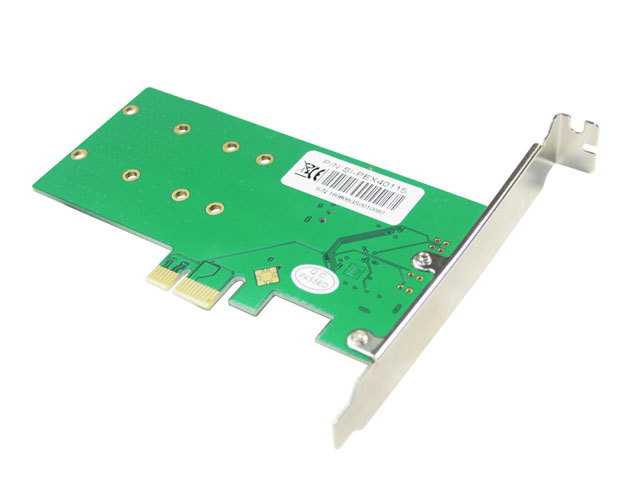

Description

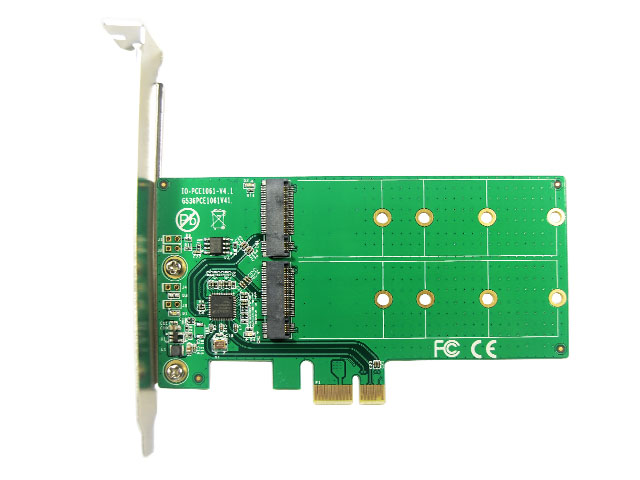

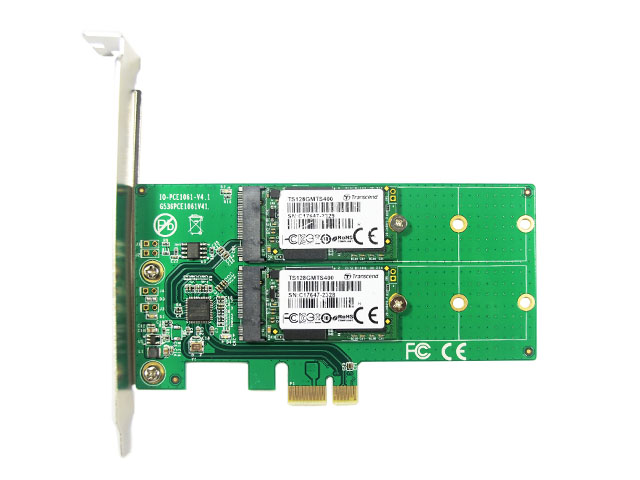

•The PCI Express card expands your PC by two M.2 NGFF
slots. You can connect up to two M.2 NGFF modules in format 2280, 2260,
2242 and 2230.
Features
•Compliant with PCI Express Base Spec. Revision 2.0 backward compatible to Revision 1.0a
•Fully compliant with Serial ATA specifications 3.0
•Compliant with Serial ATA AHCI (Advanced Host Controller Interface) Specification Rev 1.0
•Compliant with Bus Master Programming interface for IDE ATA Controllers Revision 1.0
•PCI Express M.2 specification 1.0
•Supports Native Command Queue (NCQ)
•Supports 6Gbps, 3Gbps SATA based M.2 NGFF 80mm, 60mm, 42mm, 30mm SSD
•Supports M.2 NGFF modules in format 2280, 2260, 2242 and 2230 with key B or key B+M based on SATA
System Requirement
•Require an empty PCIex1orx2or x4 or x8 or x16 slot in computer
•Windows® 10/8/7 (32 / 64 bit) / Vista / Server 2003 / XP / 2000 Linux：2.6.20 above
Package Content

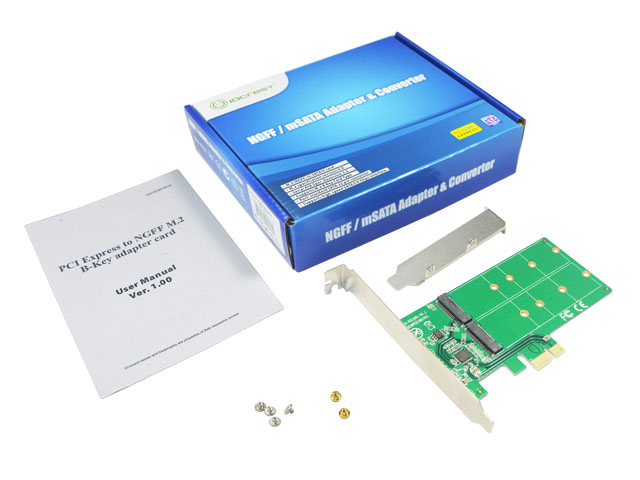

•1 x PCI Express to NGFF M.2 Key-B adapter card
•1 x User Manual
•1 x Software Driver CD
•4 x NGFF M.2 SSD mounting screws
•1 x Low profile bracket
Note:The maximum throughput of this card is limited by the bus interface.
•1.If used with PCI Express Gen 1.0 enabled computers, the max throughput is 2.5Gbps per lane.
•2.If used with PCI Express Gen 2.0 enabled computers, the max throughput is 5Gbps per lane.
<p><br/></p><p>Q: Does this array card support UEFI mode?</p><p>A: It supports both UEFI and legacy modes.</p><p>Q: What are the prerequisites for creating a RAID with the 1061R?</p><p>A: The hard drives need to support the SATA interface, and at least two hard drives are required to create a RAID. Different RAID levels have different requirements for the number of hard drives. For example, RAID 1 requires at least two hard drives.</p><p>Q: Tutorial for creating RAID 1</p><p>A: For the creation of RAID and the installation of the system, please open the following link: http://www.mmui.com.cn/index.php?id=1119. You need to enable CSM in the motherboard BIOS and select all legacy options. Save and restart. After the card's self-check screen appears, press Ctrl+R.</p><p>Is it necessary to format the hard drives before creating RAID 1?</p><p>A: No, the hard drives will be automatically initialized when creating the array.</p><p>Q: Can I create RAID 1 with data already on the hard drives?</p><p>A: Yes, but if the hard drives have data, you need to back up the data in advance.</p><p>Q: How to recover data if one of the drives fails? A: Replace the failed drive with a new, data-free hard drive of the same or larger capacity. If the replacement drive has been used before, it needs to be deleted of partitions and initialized.</p><p>Q: How to recover data if the array card fails?</p><p>A: It is recommended to back up data before replacing the array card. Choose an array card of the same model and brand as the original to ensure that the RAID configuration data can be correctly recognized and read. After installing the new array card, it will automatically detect and read the existing RAID configuration data.</p><p>Q: How to recover data if one of the drives and the card fail simultaneously?</p><p>A: Before replacing the card and the hard drive, back up the data from the good hard drive. Then, replace the damaged array card and hard drive. When replacing, choose an array card of the same model and brand as the original to ensure that the RAID configuration data can be correctly recognized and read. For the hard drive, the new hard drive must be in good condition.</p><p><br/></p>
